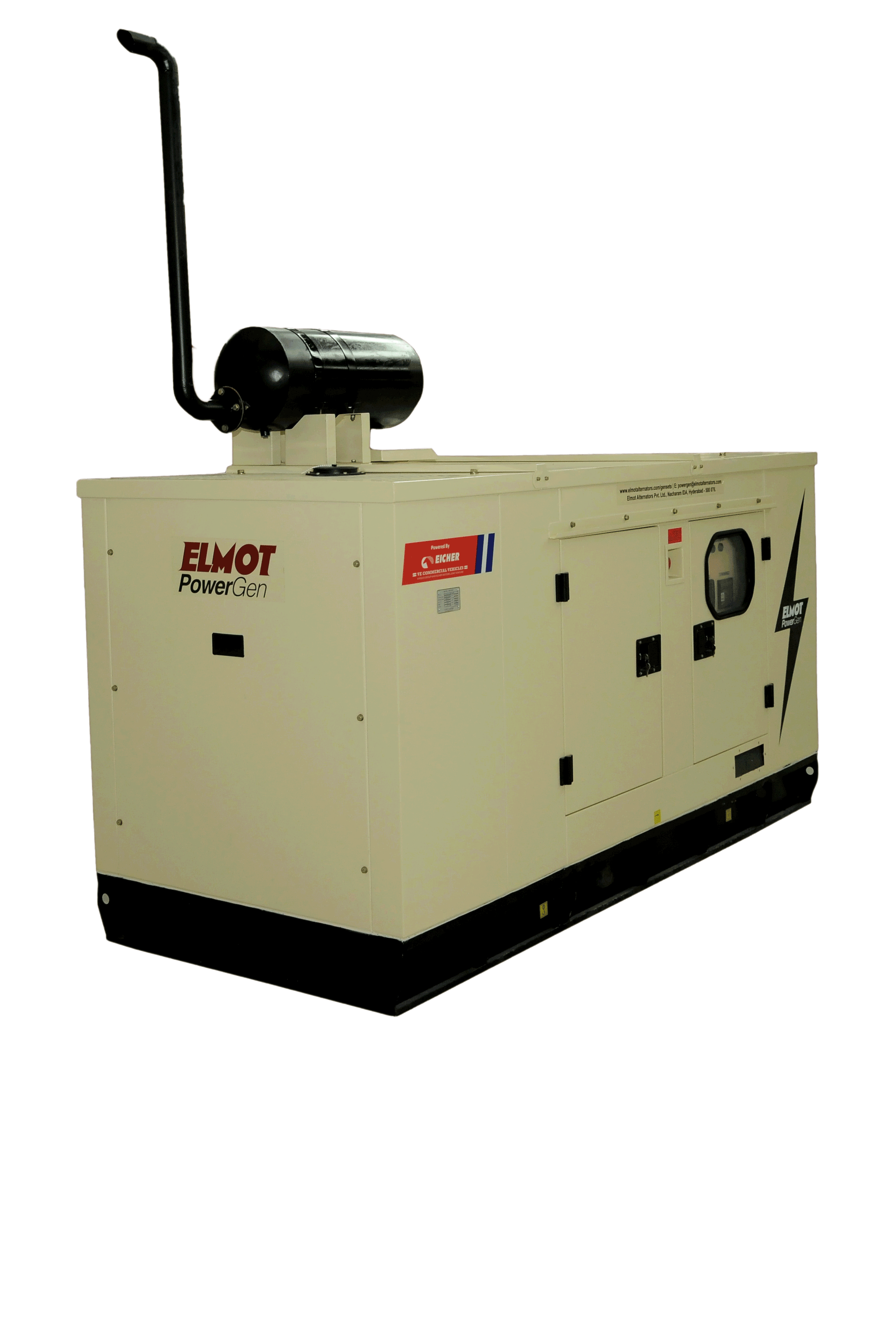

| DG Set model NO |
ELM-82.5 |
| Rating |
82.5kVA |
| Rating Type (as per ISO 8528) |
Prime |
| Power Factor (PF) |
0.8 (lag) |
| Engine Model |
EE683-TCI |
| Engine Rated Power (BHP) |
105 |
| Cylinders |
6 |
| Aspriration |
TCI |
| Displacement (Litres) |
4.90 |
| Compression Ratio |
17:01 |
| Bore and stroke (mm) |
100 x 105 |
| Method of starting - Electrical |
12V DC |
| Minimum capacity of Amp.hr starting BATTERY |
120 |
| Lube Oil Consumption (% of fuel Consumption) |
0.1 |
| Lube Oil Sump capacity (Litres) |
14 |
| Coolant Capacity - UOM as Litres |
20 |
| Service Interval (Hours/Months) |
500/12 |
| Governing class |
Mechnical A1 |
| Alternator Make |
Mecc Alte/Leroy Somer/Stamford |
| Alternator type |
Brushless, single bearing, self-excited with solid state AVR |
| Phases |
3-phase |
| Frequency (Hz) |
50 |
| Insulation Class |
F/H |
| Control panel (Mode) |
Manual (AMF Module is standard) |
| Genset dimensions (LXBXH) |
3200x1250x1500 |
| Fuel Tank Capacity (Litres) |
150 |
| Genset Weight (kg) |
1700 |
