    15 kVA Elmot DG Sets

    15 kVA silent DG set

    15 kVA DG SET

    Model No.1 - ELM-15E G12-II ('ELMOT PowerGen' diesel generator set powered by ESCORTS LTD. engines)

    Model No.2 - ELM-15E ('ELMOT PowerGen' diesel generator set powered by ESCORTS LTD. engines)

    Call No:040-27179519

    Power Inside and Out

    Engine

    • Advanced technology and best metallurgy
    • Most fuel efficient engine in its class
    • Longer duration oil change period
    • Lubrication oil cooler and bypass filter in-built
    • Lower maintenance cost
    • Piston cooling nozzle
    • Extremely LOW vibration
    • In line fuel pump
    • Starter motor with thermal cut-off
    • Easy Serviceability and spares availability
    • No running-in period: First Change is after 500 hours / 6 months

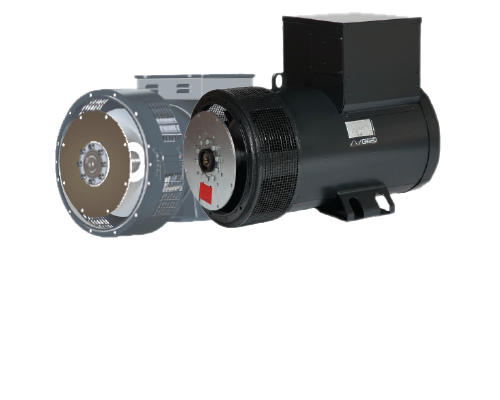

    Alternators

    • Highest efficiency in its class
    • Higher overload sustainability
    • Highest output to weight ratio
    • Voltage Regulation: ±1% (standard), ±0.5% (optional)
    • Faster recovery response

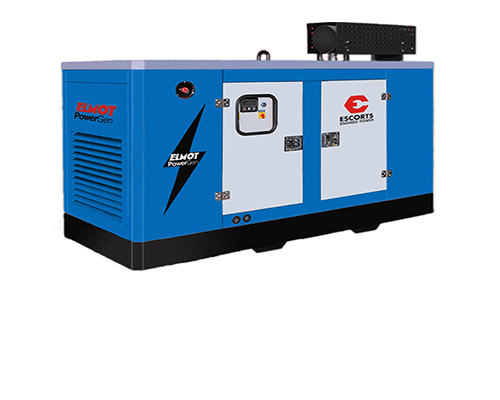

    Acoustic Enclosures

    • Aesthetically designed
    • Convenient lifting arrangement
    • Suitable for outdoor and harsh weather condition installations
    • Easy access to accessories with secure serviceability
    • Integral Control Panel
    • Integral fuel tank with 3-way fuel indication
    • Powder coated with nine tank pre-treatment for durability
    • Silencer with bird protection cover and tail pipe

    15 kVA DG SET

    General Specifications

    DG Set model No 1.ELM-15E G12-II 2.ELM-15E
    Rating 15KVA 15KVA
    Power Factor (PF) 0.8 (lag) 0.8 (lag)
    Engine Model G 12 - II G 15 - II
    Engine Rating (KW) 12 12
    Cooling type Water Cooled Water Cooled
    Cylinders 2 2
    Gross Power (BHP) 18 22
    Bore and stroke (mm) 91 x 110 95 x 110
    Displacement (Litres) 1.43 1.56
    Compression Ratio 17.5:01 17.5:01
    Lube Oil Sump capacity (Litres) 5 5
    Lube Oil Consumtion (liters/hours) 0.1 0.1
    Coolant Capacity (Litres) 7.0 7.0
    Services Invervel (Hours/Months) 500/12 500/12
    Governing type Mechnical (A1) Mechnical (A1)
    Air Cleaner type Dry Dry
    Method of starting - Electrical 12V DC 12V DC
    Minimum capacity of Amp.hr starting BATTERY 90 90
    Alternator Make Stamford/ Leory Somer/ Mecc Alte (Depends on avaikability) Stamford/ Leory Somer/ Mecc Alte (Depends on avaikability)
    Alternator type Brushless, Single bearing, Self-excited with solid state AVR Brushless, Single bearing, Self-excited with solid state AVR
    Frequency (Hz) 50 50
    Insulation Class F/H F/H
    Control panel (Mode) standard control panel / AMF optional standard control panel / AMF optional
    Genset dimensions (LXBXH) 1800X1000X1250 1800X1000X1250
    Fuel Tank Capacity (Litres) 40 40

    Notes:

    1. Conditions Apply
    2. Electronic governor is optional
    3. Other makes of alternator can be provided on request
    4. Indicative. Please refer to engineering drawings for exact details
    5. 140 kVA/112 eKW rating is available on request
    6. Power ratings are as per standard reference conditions, in accordance with BS 5514/ISO 82.546/ISO8528 and IS 10002/IS 82.546

    Options & Services:

    • Transportation and transit insurance
    • Unloading and shifting of Genset at site
    • Civil foundation at site
    • Power and control cabling outside acoustic enclosure
    • Earthing of equipment (Genset and Panel) at site
    • Exhaust pipe extension
    • Any kind of special statutory approval

    Standard Scope Of Supply:
    Lighting inside acoustic enclosure Included
    Fuel tank & fuel piping Inbuilt (with lock and key arrangement)
    First fill of lube Oil & coolant Included
    Power Cable Included within acoustic enclosure (between alternator & Genset panel)
    Silencer with tail pipe Included
    Fuel level gauge & sensor Included
    Emergency Stop button (E-STOP) Included
